TIL 240529 회원기능 설계, JWT 로그인 인증처리(Filter)

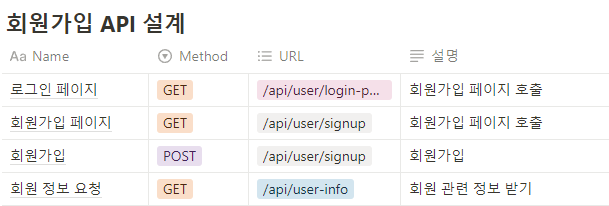

회원가입 API설계





회원 DB에 매핑되는 @Entity 클래스 구현

 User.java

package com.sparta.myselectshop.entity;
import jakarta.persistence.*;
import lombok.Getter;
import lombok.NoArgsConstructor;
import lombok.Setter;

@Entity
@Getter
@Setter
@NoArgsConstructor
@Table(name = "users")
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false, unique = true)
    private String username;

    @Column(nullable = false)
    private String password;

    @Column(nullable = false, unique = true)
    private String email;

    @Column(nullable = false)
    @Enumerated(value = EnumType.STRING)
    private UserRoleEnum role;

    public User(String username, String password, String email, UserRoleEnum role) {
        this.username = username;
        this.password = password;
        this.email = email;
        this.role = role;
    }
}

UserRoleEnum.java

package com.sparta.myselectshop.entity;
public enum UserRoleEnum {
    USER(Authority.USER),  // 사용자 권한
    ADMIN(Authority.ADMIN);  // 관리자 권한

    private final String authority;

    UserRoleEnum(String authority) {
        this.authority = authority;
    }

    public String getAuthority() {
        return this.authority;
    }

    public static class Authority {
        public static final String USER = "ROLE_USER";
        public static final String ADMIN = "ROLE_ADMIN";
    }
}

UserController

package com.sparta.myselectshop.controller;

import com.sparta.myselectshop.dto.SignupRequestDto;

import com.sparta.myselectshop.dto.UserInfoDto;

import com.sparta.myselectshop.entity.UserRoleEnum;

import com.sparta.myselectshop.security.UserDetailsImpl;
import com.sparta.myselectshop.service.UserService;
import jakarta.validation.Valid;
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.security.core.annotation.AuthenticationPrincipal;
import org.springframework.stereotype.Controller;
import org.springframework.validation.BindingResult;
import org.springframework.validation.FieldError;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import java.util.List;

@Slf4j
@Controller
@RequiredArgsConstructor
@RequestMapping("/api")
public class UserController {

    private final UserService userService;

    @GetMapping("/user/login-page")
    public String loginPage() {
        return "login";
    }

    @GetMapping("/user/signup")
    public String signupPage() {
        return "signup";
    }

    @PostMapping("/user/signup")
    public String signup(@Valid SignupRequestDto requestDto, BindingResult bindingResult) {
        // Validation 예외처리
        List<FieldError> fieldErrors = bindingResult.getFieldErrors();
        if(fieldErrors.size() > 0) {
            for (FieldError fieldError : bindingResult.getFieldErrors()) {
                log.error(fieldError.getField() + " 필드 : " + fieldError.getDefaultMessage());
            }
            return "redirect:/api/user/signup";
        }

        userService.signup(requestDto);

        return "redirect:/api/user/login-page";
    }

    // 회원 관련 정보 받기
    @GetMapping("/user-info")
    @ResponseBody
    public UserInfoDto getUserInfo(@AuthenticationPrincipal UserDetailsImpl userDetails) {
        String username = userDetails.getUser().getUsername();
        UserRoleEnum role = userDetails.getUser().getRole();
        boolean isAdmin = (role == UserRoleEnum.ADMIN);

        return new UserInfoDto(username, isAdmin);
    }
}

SignupRequestDto

package com.sparta.myselectshop.dto;
import jakarta.validation.constraints.Email;
import jakarta.validation.constraints.NotBlank;
import lombok.Getter;
import lombok.Setter;

@Getter
@Setter
public class SignupRequestDto {
    @NotBlank
    private String username;
    @NotBlank
    private String password;
    @Email
    @NotBlank
    private String email;
    private boolean admin = false;
    private String adminToken = "";
}



회원정보 요청 API DTO

UserInfoDto

package com.sparta.myselectshop.dto;

import lombok.AllArgsConstructor;
import lombok.Getter;

@Getter
@AllArgsConstructor
public class UserInfoDto {
    String username;
    boolean isAdmin;
}



UserService

package com.sparta.myselectshop.service;



import com.sparta.myselectshop.dto.SignupRequestDto;

import com.sparta.myselectshop.entity.User;

import com.sparta.myselectshop.entity.UserRoleEnum;
import com.sparta.myselectshop.repository.UserRepository;
import lombok.RequiredArgsConstructor;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

import java.util.Optional;

@Service
@RequiredArgsConstructor
public class UserService {

    private final UserRepository userRepository;
    private final PasswordEncoder passwordEncoder;

    // ADMIN_TOKEN
    private final String ADMIN_TOKEN = "AAABnvxRVklrnYxKZ0aHgTBcXukeZygoC";

    public void signup(SignupRequestDto requestDto) {
        String username = requestDto.getUsername();
        String password = passwordEncoder.encode(requestDto.getPassword());

        // 회원 중복 확인
        Optional<User> checkUsername = userRepository.findByUsername(username);
        if (checkUsername.isPresent()) {
            throw new IllegalArgumentException("중복된 사용자가 존재합니다.");
        }

        // email 중복확인
        String email = requestDto.getEmail();
        Optional<User> checkEmail = userRepository.findByEmail(email);
        if (checkEmail.isPresent()) {
            throw new IllegalArgumentException("중복된 Email 입니다.");
        }

        // 사용자 ROLE 확인
        UserRoleEnum role = UserRoleEnum.USER;
        if (requestDto.isAdmin()) {
            if (!ADMIN_TOKEN.equals(requestDto.getAdminToken())) {
                throw new IllegalArgumentException("관리자 암호가 틀려 등록이 불가능합니다.");
            }
            role = UserRoleEnum.ADMIN;
        }

        // 사용자 등록
        User user = new User(username, password, email, role);
        userRepository.save(user);
    }
}

















UserRepository

package com.sparta.myselectshop.repository;

import com.sparta.myselectshop.entity.User;

import org.springframework.data.jpa.repository.JpaRepository;

import java.util.Optional;

public interface UserRepository extends JpaRepository<User, Long> {
    Optional<User> findByUsername(String username);
    Optional<User> findByEmail(String email);
}



JWT 로그인 인증처리(Filter)

Client와 Server가 JWT를 주고받는 방식은 개발자가 선택

Client와 Server 모두 JWT를 직접 HTTP Header에 담아서 전달받는 방식으로 구현



JWT 사용 흐름

1. Client가 username, password로 로그인 성공 시

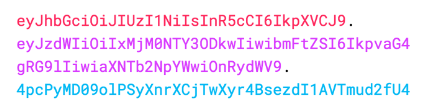

   1) 서버에서 "로그인 정보" -> JWT로 암호화 (Secret Key 사용)

   ex)



2) JWT를 Client 응답 Header에 전달

Authorization: Bearer <JWT>
ex)
Authorization: Bearer eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJzcGFydGEiLCJVU0VSTkFNRSI6IuultO2DhOydtCIsIlVTRVJfUk9MRSI6IlJPTEVfVVNFUiIsIkVYUCI6MTYxODU1Mzg5OH0.9WTrWxCWx3YvaKZG14khp21fjkU1VjZV4e9VEf05Hok



3) Client에서 JWT 저장(쿠키)



2. Client 에서 JWT 통해 인증방법

 1) JWT를 API 요청 시마다 Header에 포함

ex) HTTP Headers

Content-Type: application/json Authorization: Bearer <JWT>...



2) Server

 - Client가 전달한 JWT 위조 여부 검증 (Secret Key 사용)

 - JWT 유효기간이 지나지 않았는지 검증

 - 검증 성공시, JWT ->에서 사용자 정보를 가져와 확인 ex) GET/api/products : JWT 보낸 사용자의 관심상품 목록 조회



JwtUtil

package com.sparta.myselectshop.jwt;

import com.sparta.myselectshop.entity.UserRoleEnum;
import io.jsonwebtoken.*;
import io.jsonwebtoken.security.Keys;
import jakarta.annotation.PostConstruct;
import jakarta.servlet.http.HttpServletRequest;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;

import java.security.Key;
import java.util.Base64;
import java.util.Date;

@Slf4j(topic = "JwtUtil")
@Component
public class JwtUtil {
    // Header KEY 값
    public static final String AUTHORIZATION_HEADER = "Authorization";
    // 사용자 권한 값의 KEY
    public static final String AUTHORIZATION_KEY = "auth";
    // Token 식별자
    public static final String BEARER_PREFIX = "Bearer ";
    // 토큰 만료시간
    private final long TOKEN_TIME = 60 * 60 * 1000L; // 60분

    @Value("${jwt.secret.key}") // Base64 Encode 한 SecretKey
    private String secretKey;
    private Key key;
    private final SignatureAlgorithm signatureAlgorithm = SignatureAlgorithm.HS256;

    @PostConstruct
    public void init() {
        byte[] bytes = Base64.getDecoder().decode(secretKey);
        key = Keys.hmacShaKeyFor(bytes);
    }

    // 토큰 생성
    public String createToken(String username, UserRoleEnum role) {
        Date date = new Date();

        return BEARER_PREFIX +
                Jwts.builder()
                        .setSubject(username) // 사용자 식별자값(ID)
                        .claim(AUTHORIZATION_KEY, role) // 사용자 권한
                        .setExpiration(new Date(date.getTime() + TOKEN_TIME)) // 만료 시간
                        .setIssuedAt(date) // 발급일
                        .signWith(key, signatureAlgorithm) // 암호화 알고리즘
                        .compact();
    }

    // header 에서 JWT 가져오기
    public String getJwtFromHeader(HttpServletRequest request) {
        String bearerToken = request.getHeader(AUTHORIZATION_HEADER);
        if (StringUtils.hasText(bearerToken) && bearerToken.startsWith(BEARER_PREFIX)) {
            return bearerToken.substring(7);
        }
        return null;
    }

    // 토큰 검증
    public boolean validateToken(String token) {
        try {
            Jwts.parserBuilder().setSigningKey(key).build().parseClaimsJws(token);
            return true;
        } catch (SecurityException | MalformedJwtException | SignatureException e) {
            log.error("Invalid JWT signature, 유효하지 않는 JWT 서명 입니다.");
        } catch (ExpiredJwtException e) {
            log.error("Expired JWT token, 만료된 JWT token 입니다.");
        } catch (UnsupportedJwtException e) {
            log.error("Unsupported JWT token, 지원되지 않는 JWT 토큰 입니다.");
        } catch (IllegalArgumentException e) {
            log.error("JWT claims is empty, 잘못된 JWT 토큰 입니다.");
        }
        return false;
    }

    // 토큰에서 사용자 정보 가져오기
    public Claims getUserInfoFromToken(String token) {
        return Jwts.parserBuilder().setSigningKey(key).build().parseClaimsJws(token).getBody();
    }
}



Spring Security 적용

'Spring Security' 활성화



UserDetails & UserDetailsService 구현

UserDetailsImpl

package com.sparta.myselectshop.security;



import com.sparta.myselectshop.entity.User;

import com.sparta.myselectshop.entity.UserRoleEnum;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import java.util.ArrayList;
import java.util.Collection;

public class UserDetailsImpl implements UserDetails {

    private final User user;

    public UserDetailsImpl(User user) {
        this.user = user;
    }

    public User getUser() {
        return user;
    }

    @Override
    public String getPassword() {
        return user.getPassword();
    }

    @Override
    public String getUsername() {
        return user.getUsername();
    }

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        UserRoleEnum role = user.getRole();
        String authority = role.getAuthority();

        SimpleGrantedAuthority simpleGrantedAuthority = new SimpleGrantedAuthority(authority);
        Collection<GrantedAuthority> authorities = new ArrayList<>();
        authorities.add(simpleGrantedAuthority);

        return authorities;
    }

    @Override
    public boolean isAccountNonExpired() {
        return true;
    }

    @Override
    public boolean isAccountNonLocked() {
        return true;
    }

    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }

    @Override
    public boolean isEnabled() {
        return true;
    }
}















UserDetailsServiceImpl

package com.sparta.myselectshop.security;

import com.sparta.myselectshop.entity.User;

import com.sparta.myselectshop.repository.UserRepository;
import lombok.RequiredArgsConstructor;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

@Service
@RequiredArgsConstructor
public class UserDetailsServiceImpl implements UserDetailsService {

    private final UserRepository userRepository;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        User user = userRepository.findByUsername(username)
                .orElseThrow(() -> new UsernameNotFoundException("Not Found " + username));

        return new UserDetailsImpl(user);
    }
}



JwtAuthenticationFileter : 로그인 진행 및 JWT 생성

LoginRequestDto

package com.sparta.myselectshop.dto;

import lombok.Getter;
import lombok.Setter;

@Setter
@Getter
public class LoginRequestDto {
    private String username;
    private String password;
}



JwtAuthenticationFilter

package com.sparta.myselectshop.security;

import com.fasterxml.jackson.databind.ObjectMapper;
import com.sparta.myselectshop.dto.LoginRequestDto;

import com.sparta.myselectshop.entity.UserRoleEnum;

import com.sparta.myselectshop.jwt.JwtUtil;

import jakarta.servlet.FilterChain;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import lombok.extern.slf4j.Slf4j;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

import java.io.IOException;

@Slf4j(topic = "로그인 및 JWT 생성")
public class JwtAuthenticationFilter extends UsernamePasswordAuthenticationFilter {
    private final JwtUtil jwtUtil;

    public JwtAuthenticationFilter(JwtUtil jwtUtil) {
        this.jwtUtil = jwtUtil;
        setFilterProcessesUrl("/api/user/login");
    }

    @Override
    public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response) throws AuthenticationException {
        try {
            LoginRequestDto requestDto = new ObjectMapper().readValue(request.getInputStream(), LoginRequestDto.class);

            return getAuthenticationManager().authenticate(
                    new UsernamePasswordAuthenticationToken(
                            requestDto.getUsername(),
                            requestDto.getPassword(),
                            null
                    )
            );
        } catch (IOException e) {
            log.error(e.getMessage());
            throw new RuntimeException(e.getMessage());
        }
    }

    @Override
    protected void successfulAuthentication(HttpServletRequest request, HttpServletResponse response, FilterChain chain, Authentication authResult) {
        String username = ((UserDetailsImpl) authResult.getPrincipal()).getUsername();
        UserRoleEnum role = ((UserDetailsImpl) authResult.getPrincipal()).getUser().getRole();

        String token = jwtUtil.createToken(username, role);
        response.addHeader(JwtUtil.AUTHORIZATION_HEADER, token);
    }

    @Override
    protected void unsuccessfulAuthentication(HttpServletRequest request, HttpServletResponse response, AuthenticationException failed) {
        response.setStatus(401);
    }

}



JwtAuthorizationFilter : API에 전달되는 JWT 유효성 검증 및 인가 처리

package com.sparta.myselectshop.security;

import com.sparta.myselectshop.jwt.JwtUtil;

import io.jsonwebtoken.Claims;
import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import lombok.extern.slf4j.Slf4j;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContext;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.util.StringUtils;
import org.springframework.web.filter.OncePerRequestFilter;

import java.io.IOException;

@Slf4j(topic = "JWT 검증 및 인가")
public class JwtAuthorizationFilter extends OncePerRequestFilter {

    private final JwtUtil jwtUtil;
    private final UserDetailsServiceImpl userDetailsService;

    public JwtAuthorizationFilter(JwtUtil jwtUtil, UserDetailsServiceImpl userDetailsService) {
        this.jwtUtil = jwtUtil;
        this.userDetailsService = userDetailsService;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest req, HttpServletResponse res, FilterChain filterChain) throws ServletException, IOException {

        String tokenValue = jwtUtil.getJwtFromHeader(req);

        if (StringUtils.hasText(tokenValue)) {

            if (!jwtUtil.validateToken(tokenValue)) {
                log.error("Token Error");
                return;
            }

            Claims info = jwtUtil.getUserInfoFromToken(tokenValue);

            try {
                setAuthentication(info.getSubject());
            } catch (Exception e) {
                log.error(e.getMessage());
                return;
            }
        }

        filterChain.doFilter(req, res);
    }

    // 인증 처리
    public void setAuthentication(String username) {
        SecurityContext context = SecurityContextHolder.createEmptyContext();
        Authentication authentication = createAuthentication(username);
        context.setAuthentication(authentication);

        SecurityContextHolder.setContext(context);
    }

    // 인증 객체 생성
    private Authentication createAuthentication(String username) {
        UserDetails userDetails = userDetailsService.loadUserByUsername(username);
        return new UsernamePasswordAuthenticationToken(userDetails, null, userDetails.getAuthorities());
    }
}

'Spring Security' 설정 및 인증/인가 필터 등록

WebSecurityConfig

package com.sparta.myselectshop.config;



import com.sparta.myselectshop.jwt.JwtUtil;
import com.sparta.myselectshop.security.JwtAuthenticationFilter;
import com.sparta.myselectshop.security.JwtAuthorizationFilter;
import com.sparta.myselectshop.security.UserDetailsServiceImpl;
import lombok.RequiredArgsConstructor;
import org.springframework.boot.autoconfigure.security.servlet.PathRequest;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.configuration.AuthenticationConfiguration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableWebSecurity // Spring Security 지원을 가능하게 함
@RequiredArgsConstructor
public class WebSecurityConfig {

    private final JwtUtil jwtUtil;
    private final UserDetailsServiceImpl userDetailsService;
    private final AuthenticationConfiguration authenticationConfiguration;

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Bean
    public AuthenticationManager authenticationManager(AuthenticationConfiguration configuration) throws Exception {
        return configuration.getAuthenticationManager();
    }

    @Bean
    public JwtAuthenticationFilter jwtAuthenticationFilter() throws Exception {
        JwtAuthenticationFilter filter = new JwtAuthenticationFilter(jwtUtil);
        filter.setAuthenticationManager(authenticationManager(authenticationConfiguration));
        return filter;
    }

    @Bean
    public JwtAuthorizationFilter jwtAuthorizationFilter() {
        return new JwtAuthorizationFilter(jwtUtil, userDetailsService);
    }

    @Bean
    public SecurityFilterChain securityFilterChain(HttpSecurity http) throws Exception {
        // CSRF 설정
        http.csrf((csrf) -> csrf.disable());

        // 기본 설정인 Session 방식은 사용하지 않고 JWT 방식을 사용하기 위한 설정
        http.sessionManagement((sessionManagement) ->
                sessionManagement.sessionCreationPolicy(SessionCreationPolicy.STATELESS)
        );

        http.authorizeHttpRequests((authorizeHttpRequests) ->
                authorizeHttpRequests
                        .requestMatchers(PathRequest.toStaticResources().atCommonLocations()).permitAll() // resources 접근 허용 설정
                        .requestMatchers("/").permitAll() // 메인 페이지 요청 허가
                        .requestMatchers("/api/user/**").permitAll() // '/api/user/'로 시작하는 요청 모두 접근 허가
                        .anyRequest().authenticated() // 그 외 모든 요청 인증처리
        );

        http.formLogin((formLogin) ->
                formLogin
                        .loginPage("/api/user/login-page").permitAll()
        );

        // 필터 관리
        http.addFilterBefore(jwtAuthorizationFilter(), JwtAuthenticationFilter.class);
        http.addFilterBefore(jwtAuthenticationFilter(), UsernamePasswordAuthenticationFilter.class);

        return http.build();
    }
}
